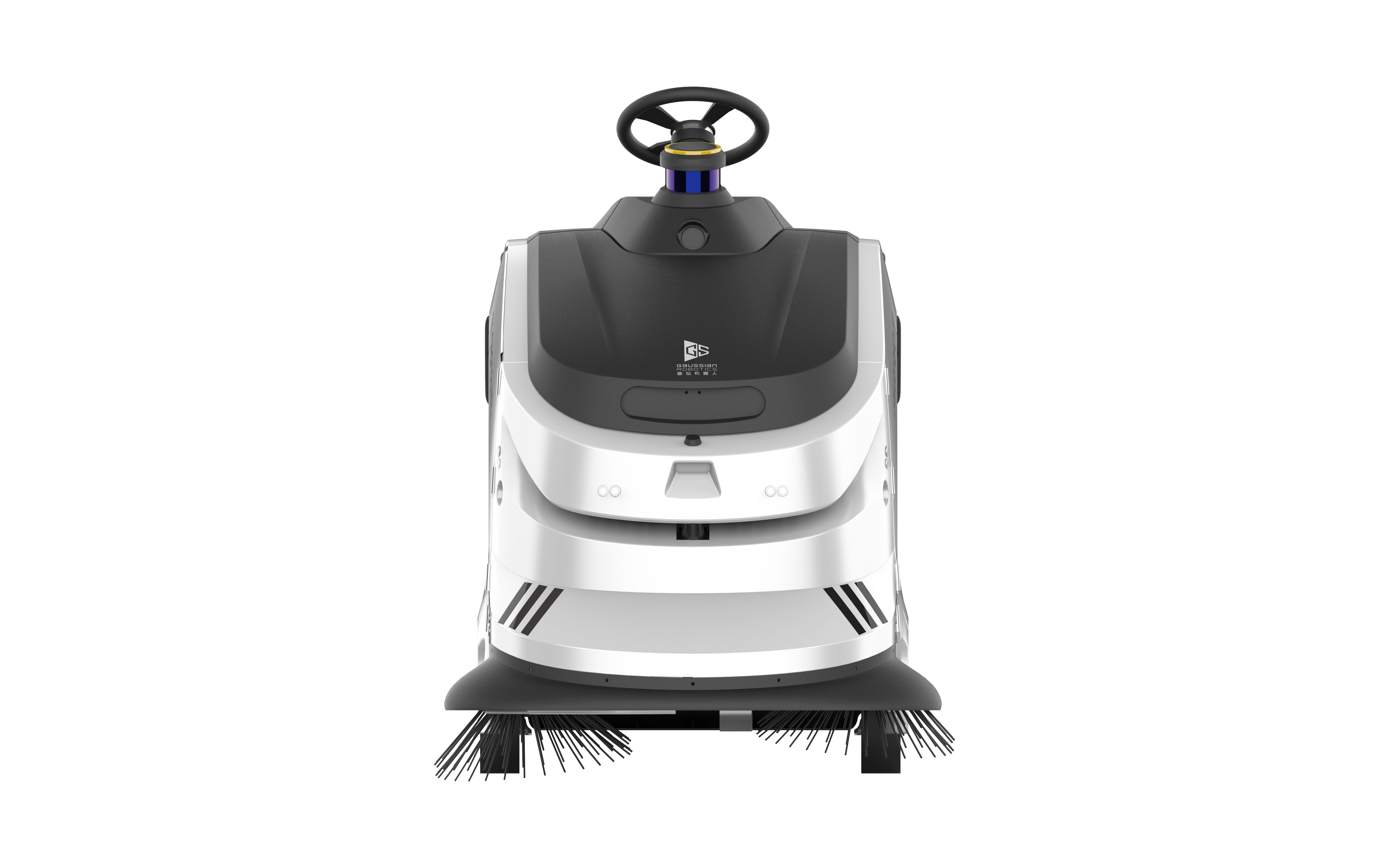

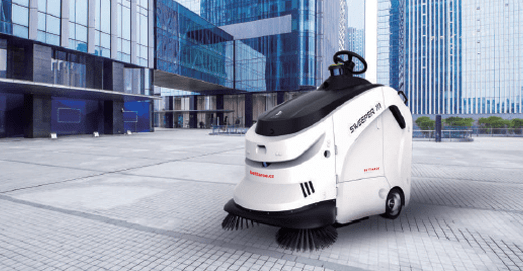

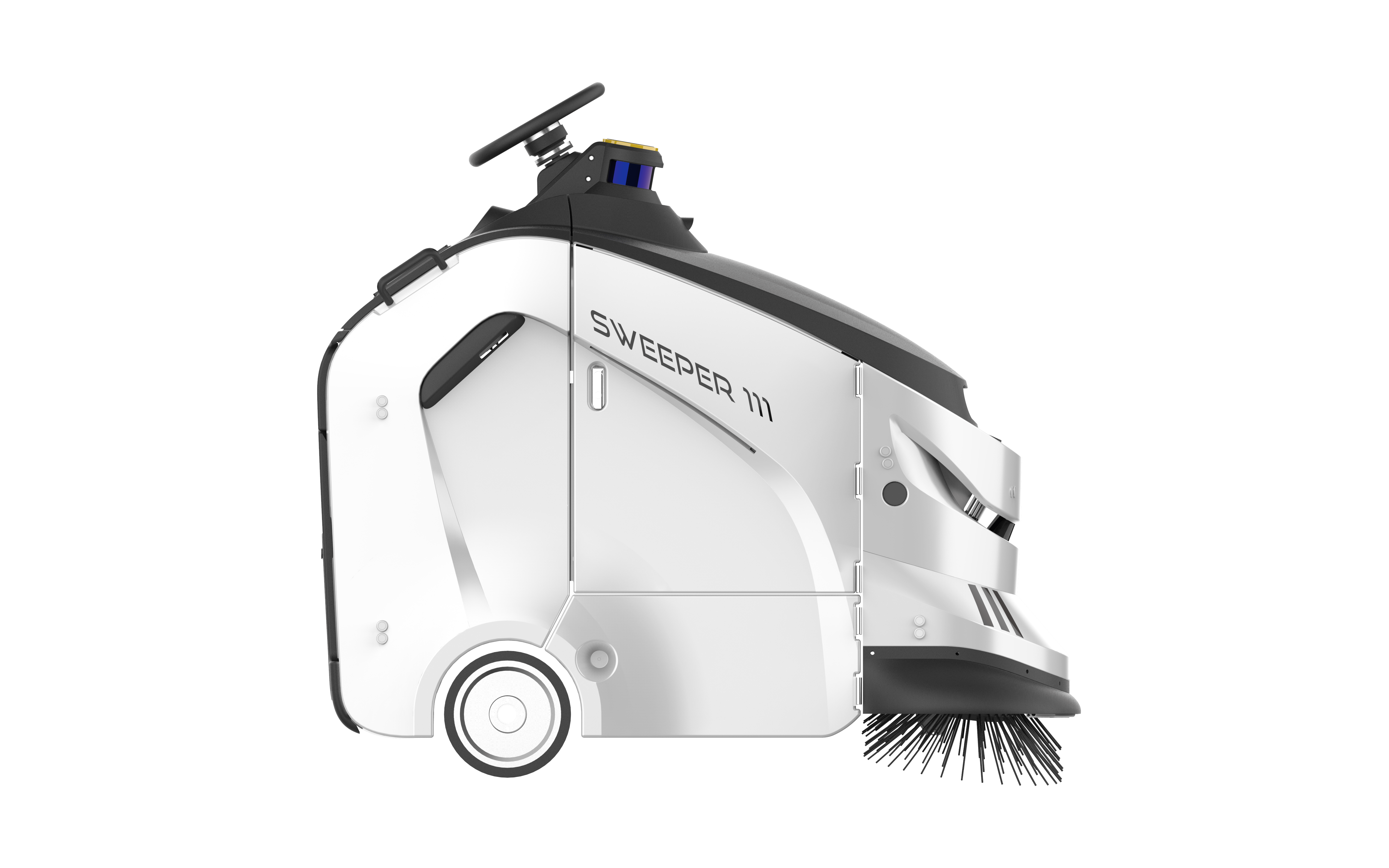

ECOBOT Sweeper 111

A robot that automatically brushes away all your cares.

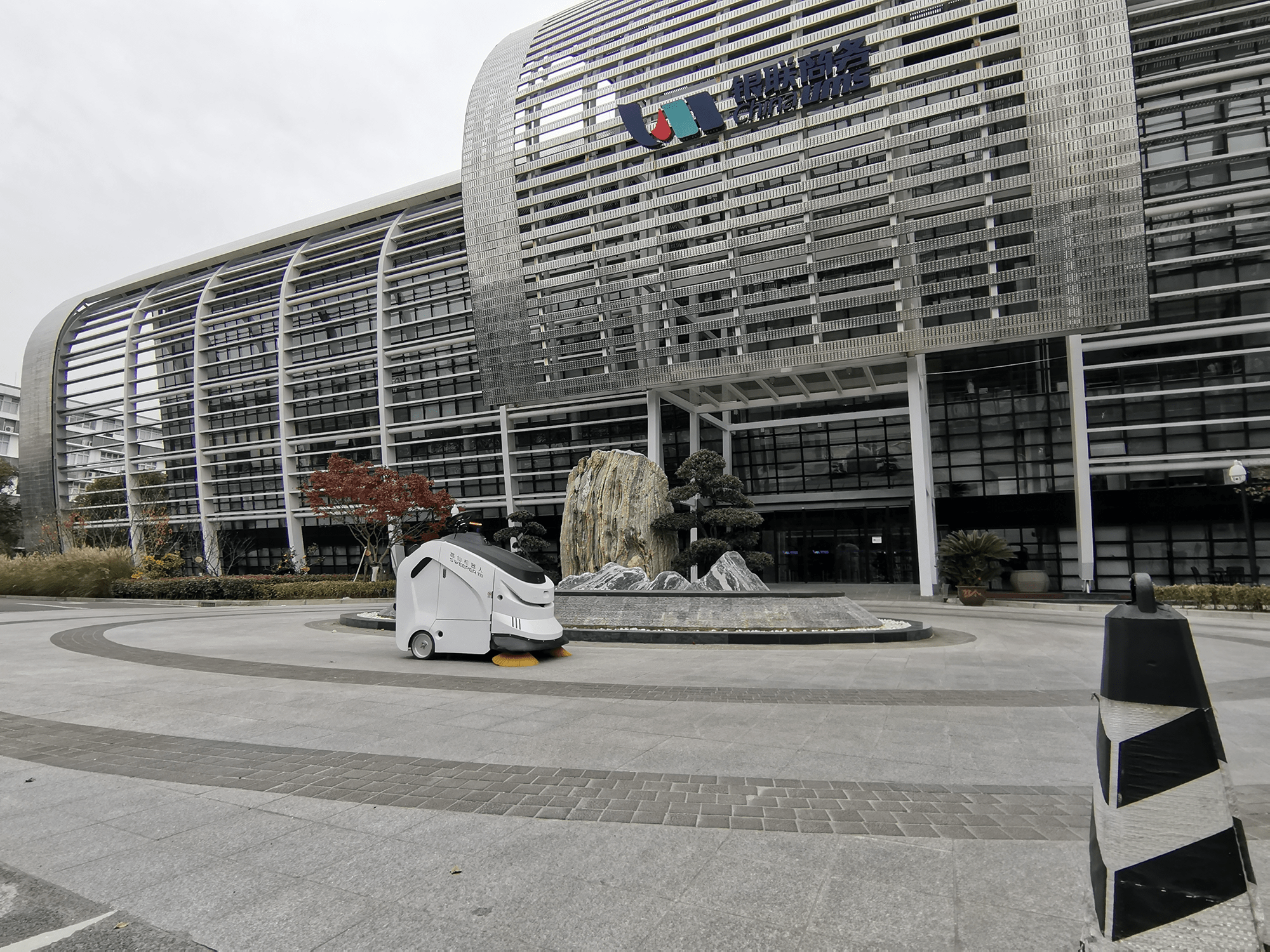

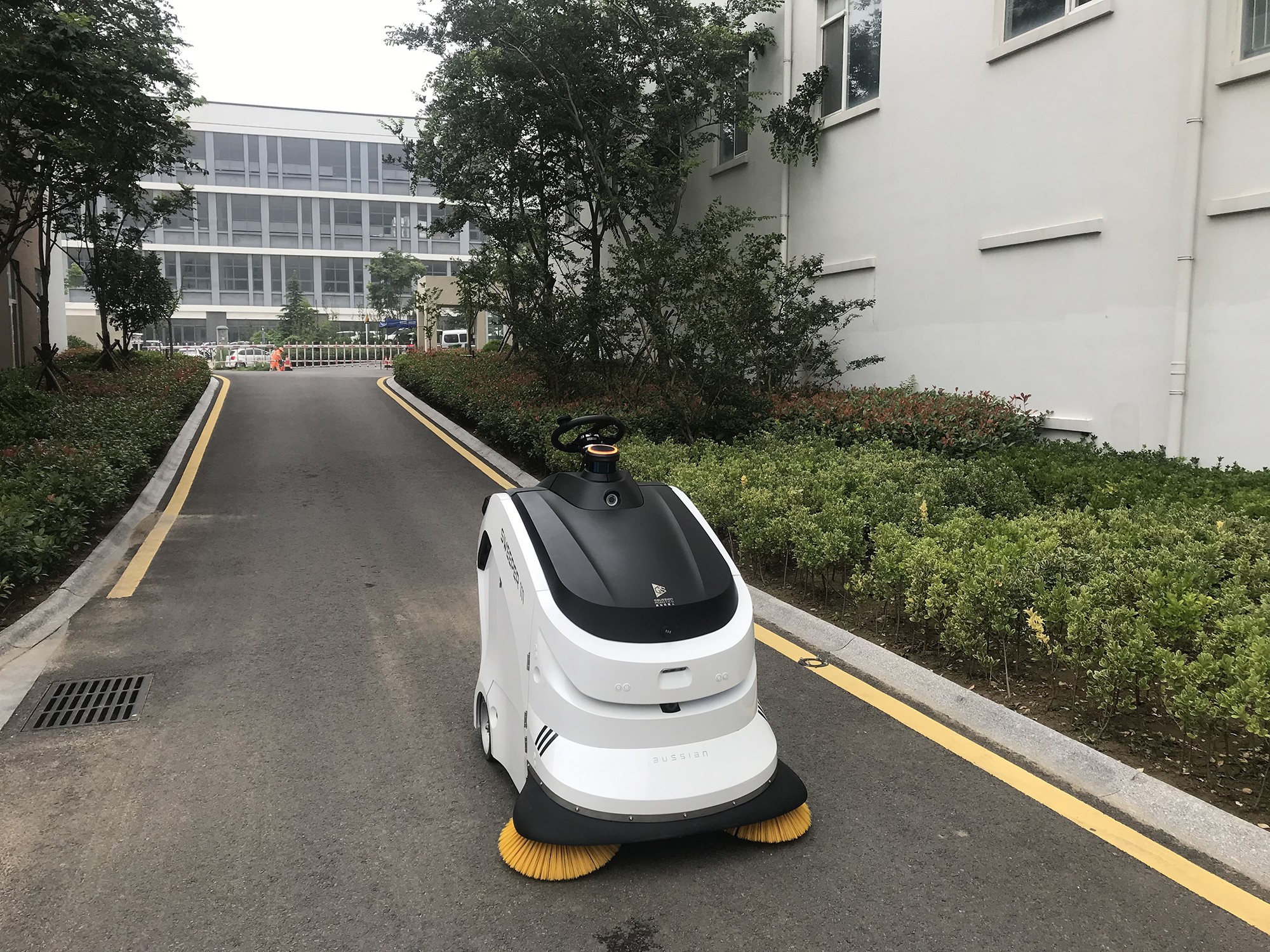

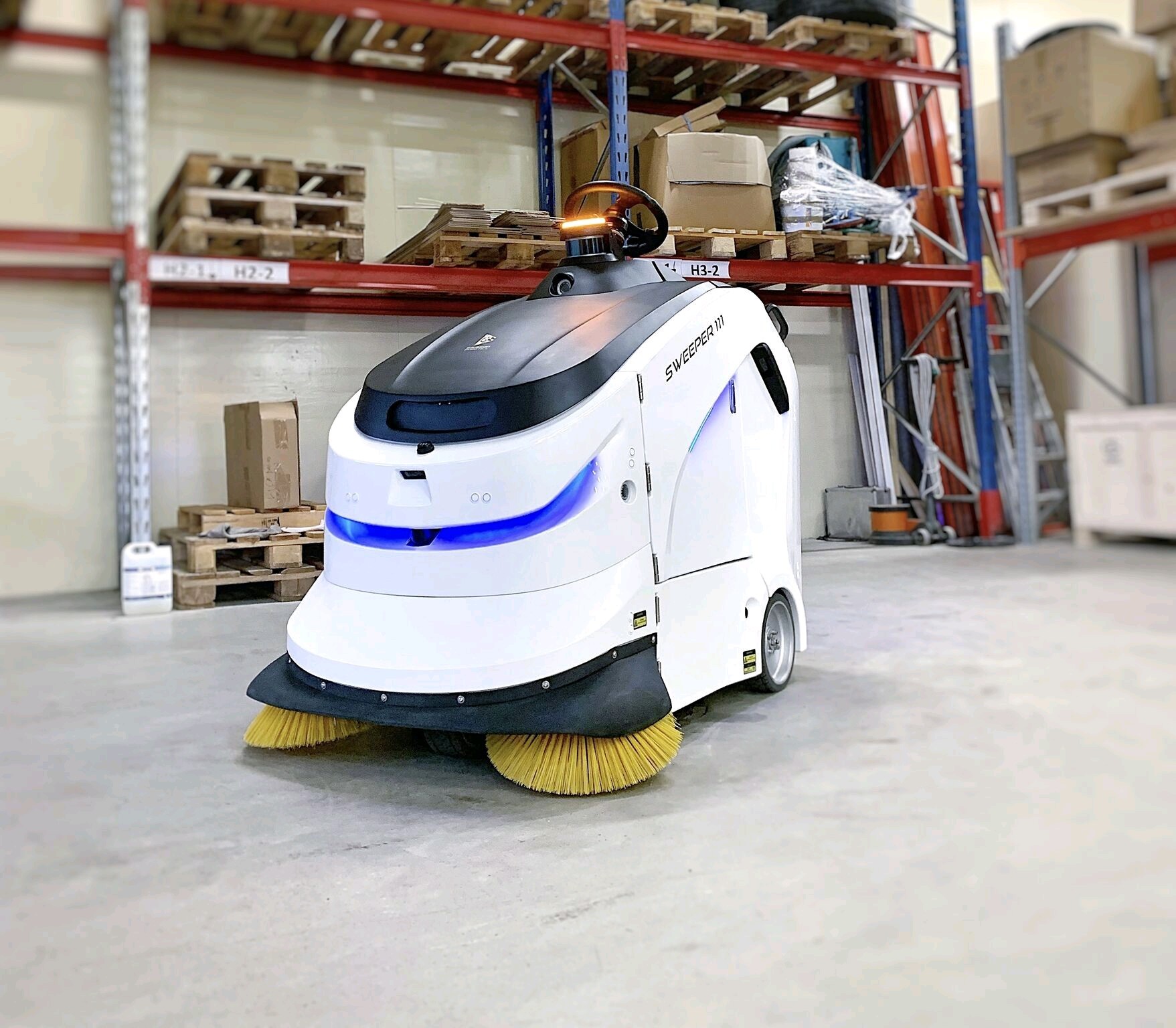

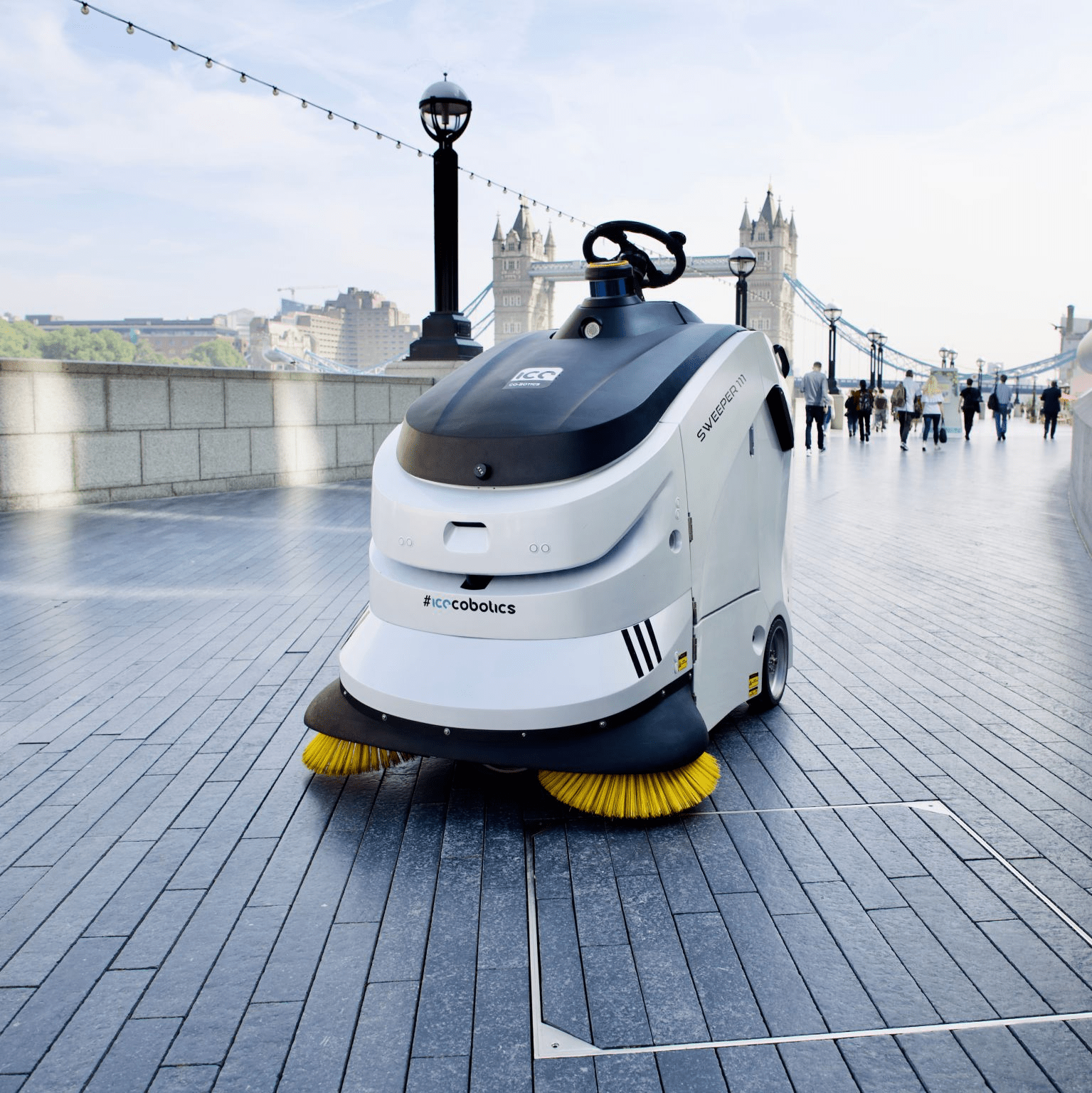

Sweeper 111 is ideal for heavy-duty cleaning in large indoor and outdoor environments, including Manufacturing plants, Warehouses, Industrial Parks, Campus, Plazas, Parks & Pleasure grounds, Harbor grounds, etc.


CORE STRENGTHS

SIMPLICITY

Robot works with Minimal Human Intervention Operation (M.H.I.O). User-friendly display with intuitive menu, accelerating setup and adoption. Flexible operation methods, controlling the machine through touch screen, mobile APP or cloud platform. Mapping, map editing and task creating can be done by the operator on the display without external assistance. You can switch between auto and manual Step-on mode with a simple command.

INTELLIGENCE

Boldly go where no other cleaning robot has gone before. Create dumping point and set auto-dumping time in the App. Sweeper 111 recognizes the garbage bin and completes the dumping process automatically.

Robot uses advanced AI navigation system empowered by semantic SLAM. Dynamically maps and plans cleaning paths to maximize cleaning coverages in a changing environment. It has incredibly fast mapping: 30 mins to map a 2,000 sqm site. Flexible map editing: Mark virtual walls and highlight areas to avoid collision and damage

Real-time data transmission and monitoring, getting real-time information of the operational status and cleaning progress. Sends detailed cleaning task reports via email or SMS, letting your data demonstrate your commitment to a quality clean

PRODUCTIVITY

Advanced cleaning efficiency - up to 5,500 sqm/h cleaning efficiency. Excellent garbage absorbing capacity. Robot absorbs garbage of various shapes and sizes, including beverage bottles, milk cartons, cigarette butts, bamboo sticks, fine dust, sand etc. Super capacity - 60L trash bin.

MANEUVERABILITY

Access restricted area while cleaning. Robust Construction with high maneuverability. Ergonomic Steering Wheel & Handle. Differential drive axel

SAFETY

Cutting edge obstacle detection & avoidance. 360° visibility – Super Obstacle Detection & Avoidance. Sweeper 111 has 30+ sensors (including 3D lidar) all over the machine body: Reacts to the changes correspondingly and automatically while sweeping, detecting and avoiding static and dynamic obstacles from all directions and in real time. It is equipped with Anti-fall sensor, Anti-collision sensors, Soft-touch bumper, E-stop Button etc., providing all-round safety. Automatic filtration system - fine dust filtration for a safe and healthy air exhaust.



Benefits of the Sweeper 111

Minimum human intervention
Automatic dumping enables continuous sweeping.


Cleans in a single sweep

Its powerful sweeping action and brush power remove deep-down dust from carpets.

SUSTAINABILITY

Calculates the most efficient path to reduce energy consumptions. Calculates the required power for completing the remaining cleaning task and charges corresponding amount of power automatically.

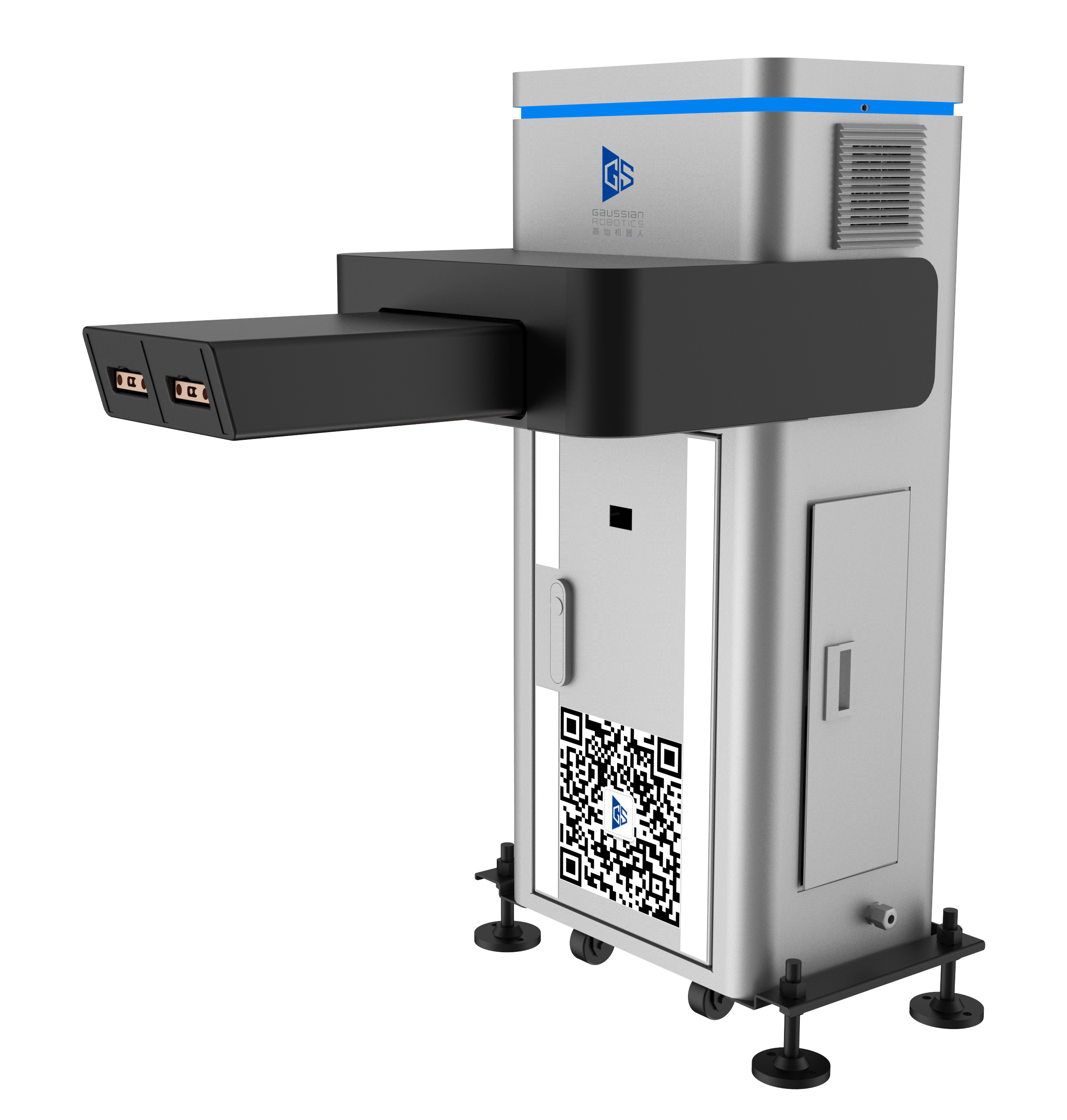

Charging station

The charging docking station is designed to keep the robot working.
When the Scrubber 50 battery runs out, the robot can automatically return
to the charging dock and recharge. Once charging is complete, it can automatically carry on with its previous activity.

Technical specification

DIMENSION (mm)
1530 (L) X 1010 (W) X 1400 (H)
CLEANING WIDTH
1100 mm
CLEANING EFFICIENCY
up to 4 000 m2/h
BATTERIES
Lithium (LFP)
AVERAGE RUN-TIME
4 - 6 hours
VOLTAGE
24 V
RATED DRIVING MOTOR POWER
560 W
RATED BRUSH MOTOR POWER
100 W
BRUSH ROTATION SPEED
up to 1 300 RPM
ROLLER BRUSH DIMENSION
90 x 440 mm
WEIGHT OF ECOBOT
500 kg
SIDE BRUSH DIMENSION
480 mm
MAXIMUM VACUUM
600 kPa
WASTE WATER TANK
60 litres
SPEED
0 - 5 km/h
NOISE
65-80 dBA
